ESR UK understand that sometimes clients know what they need but don’t have the personnel internally or know the standards they have to work to and certification they need. This is where we come in.
With extensive experience in design for fabrication & machining but also in manufacture, we know what needs to be produced to ensure that not just the initial design stage, but the following manufacturing stage are as straightforward as possible.
We can quickly progress projects and also easily make changes if required, as design and manufacture are under one roof. This reduces cost to our clients and reduces time spent dealing with several suppliers to make changes.
Design Services
Structural Design
ESR UK are regularly asked by clients to carry out structural design work of various sizes & complexities, such as the below;
Lifting/Spreader Beams & Frames
Test Fixtures
Manual Handling Kit - Spanning Beams, Deck Trollies, Skips, Baskets
Hose Reels
Subsea Baskets
Cable Handling Quadrants
Site Surveys
The above can be designed in accordance with and/or certified to standards such as ISO10855 or DNV 2.7-1 / 2.7-3 for example if required
Piping Design
ESR UK are now being asked by clients to carry out piping design of various scopes where working with a larger engineering contractor isn’t cost effective for the size of the job, some examples include;
Liquid & Steam Manifolds
Bespoke Commissioning Spools
X-Overs / Adapters
Pigging Canisters
Jetting Spools
Dredging Swords
Rework of pipework on units such as compressors, subsea excavators etc
Replacement / adapting of existing pipework
Pressure retaining items such as Manifolds, Canisters etc are certified as per client request, typically to the PED and/or in accordance with the specific system they are being fitted to.

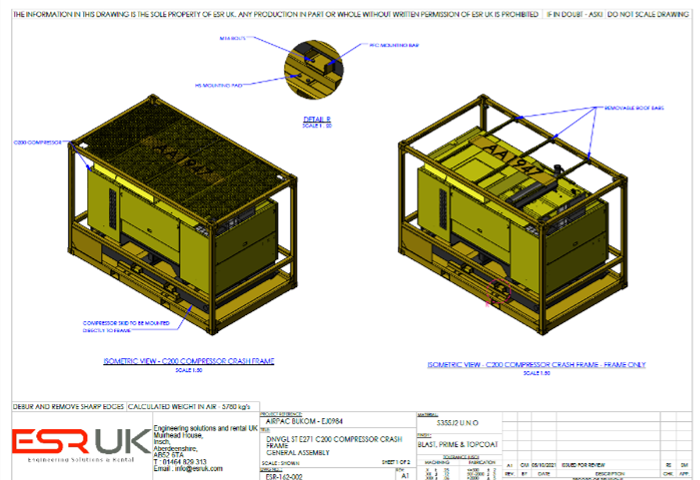

Compressor DNV 2.7-1 Crash Frame

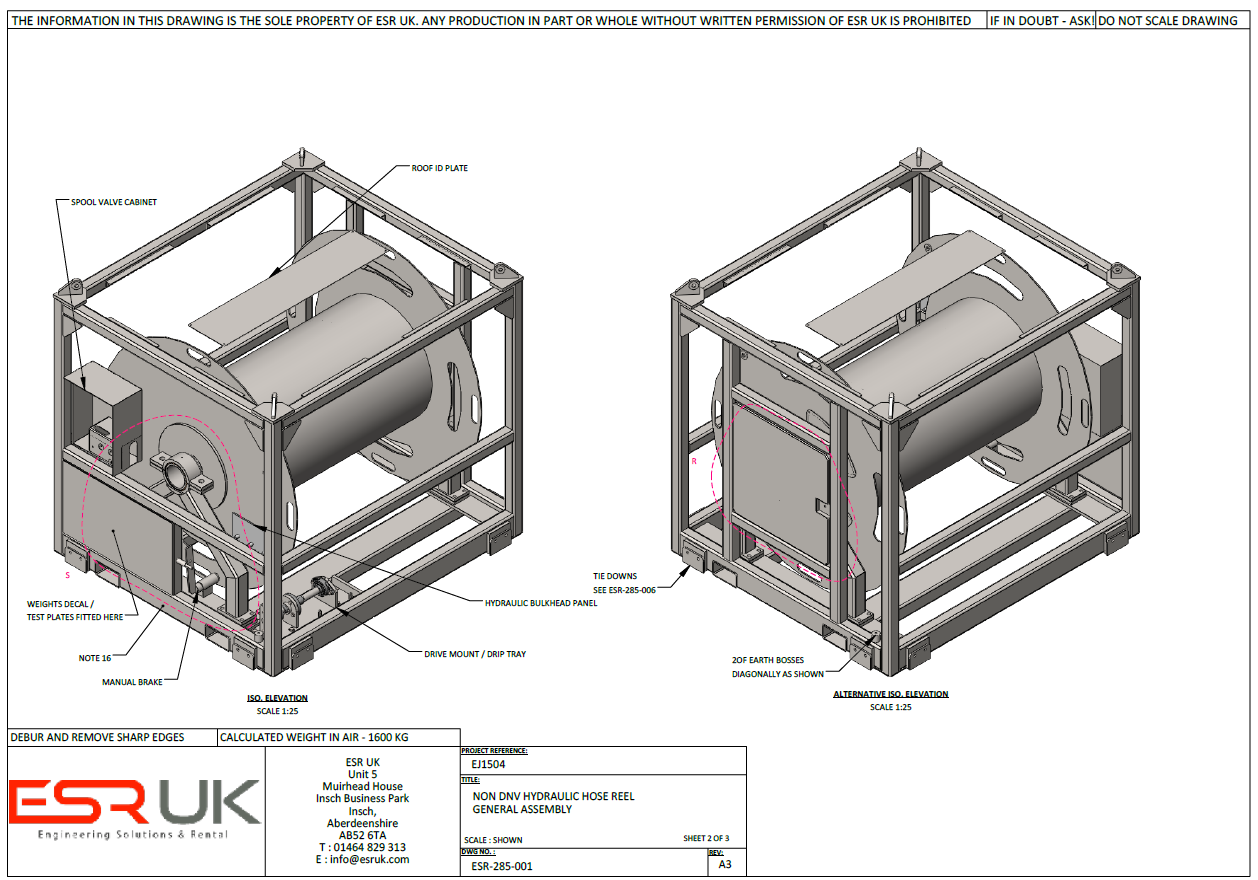

Hose Reel
Spray Nozzle Spools
FIG 206 Manifold

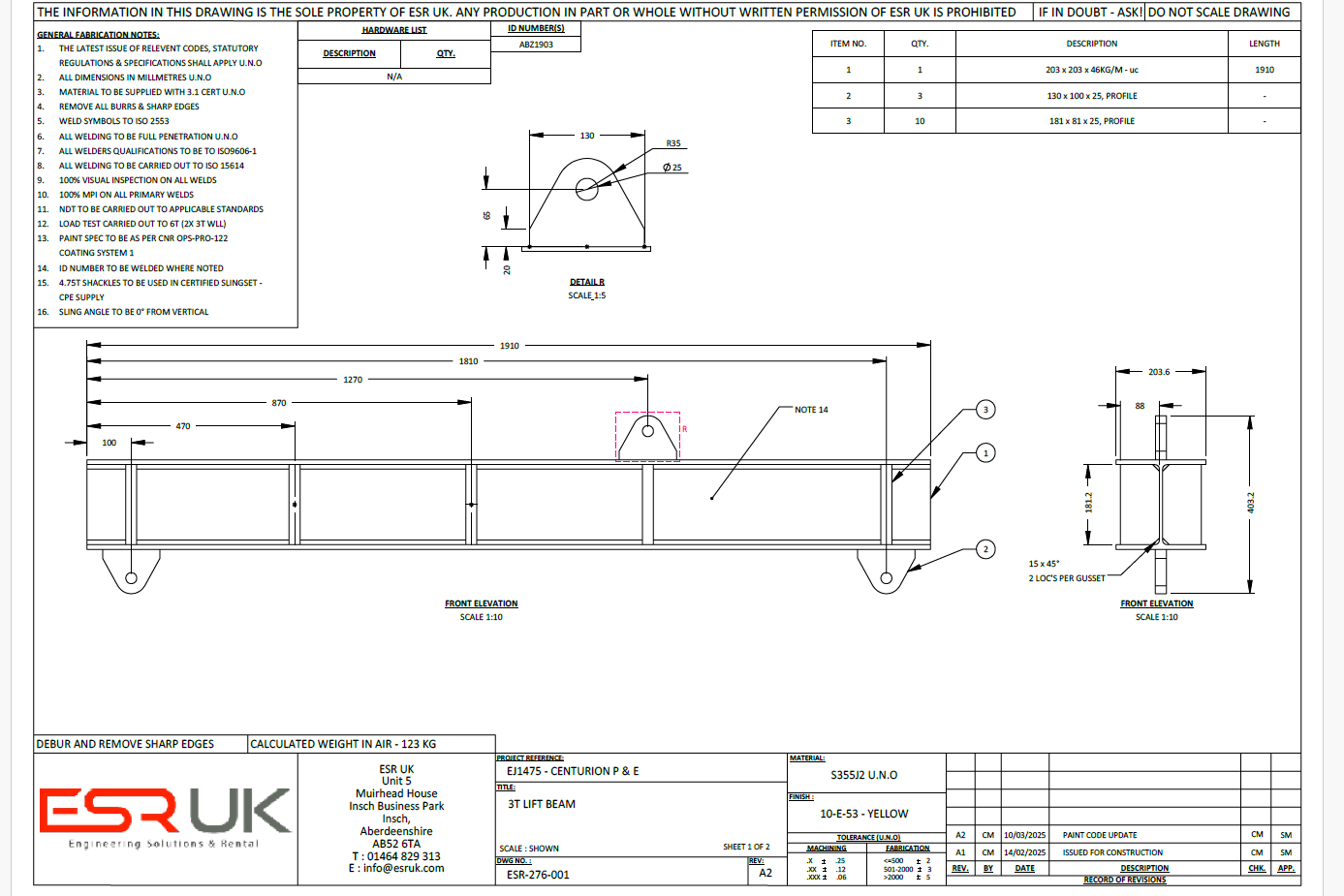

Lift Beam
Steam Manifold

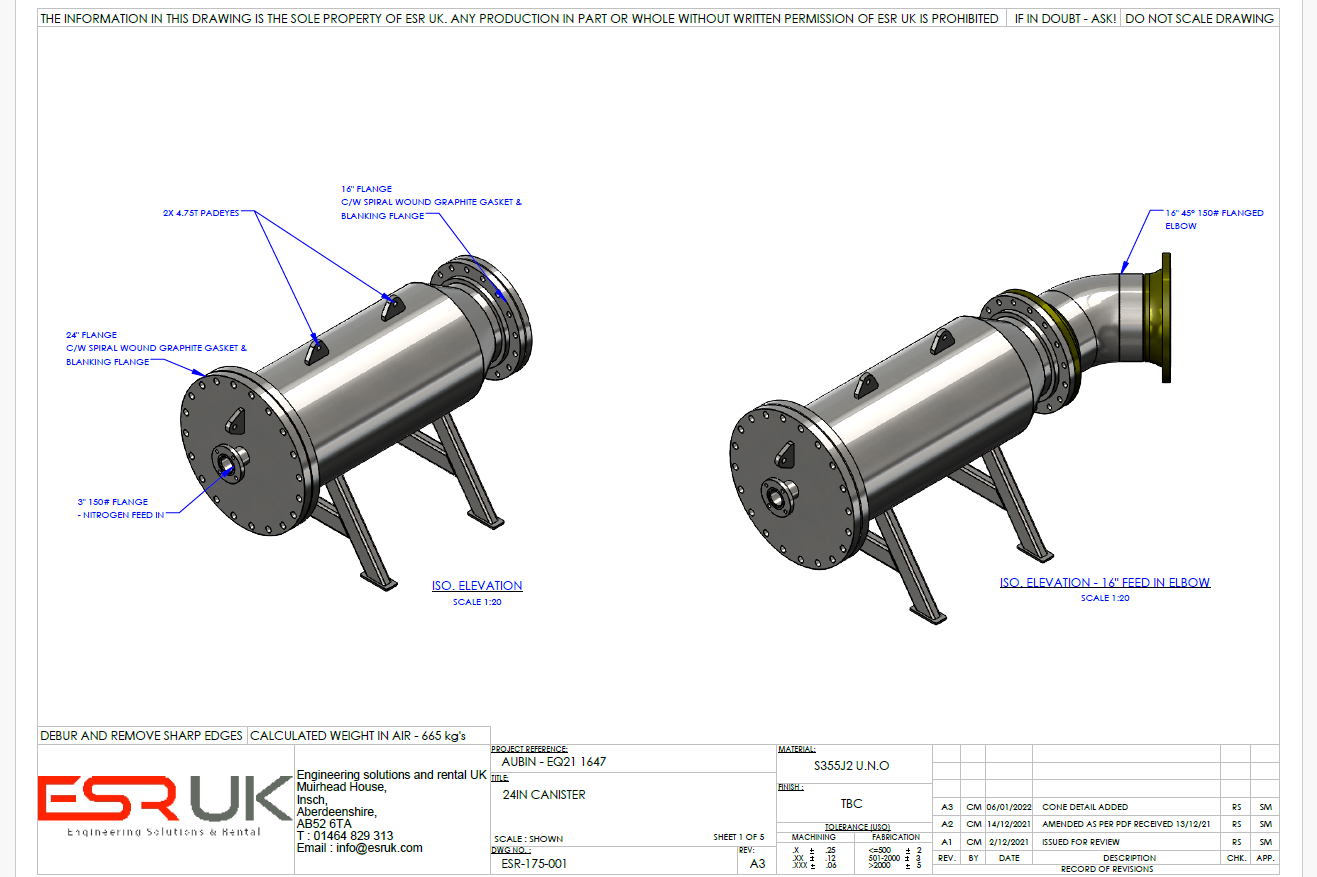

24" Pig Canister

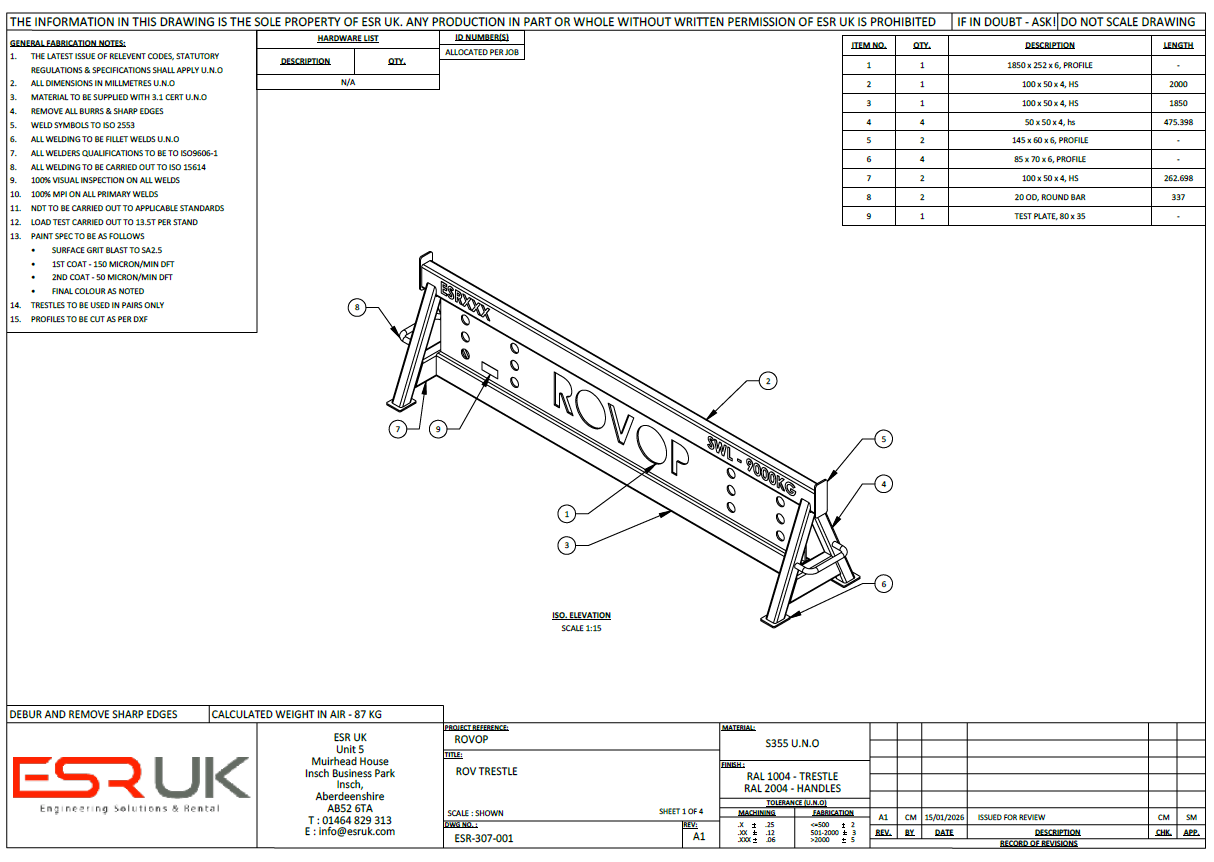

ROV Trestles
